RACE AXY WP DX
The Race wheel range gets expanded and so meets different types of use. Starting from the careful choice of the materials of construction, Race wheels are designed to ensure maximum comfort even in intense use. The light alloy, medium profile rims provide the needed aerodynamics also for a limited race use. The light alloy hubs move on sealed bearings to ensure an excellent smoothness in any condition.The new Race DX is studied and developed for the assembly of the disk brake, and the rim profile ensures excellent rigidity and reactivity.
PERFORMANCE CHART
| WEIGHT | |
| Set | 1990g |
| Front | 911g |
| Rear | 1079g |

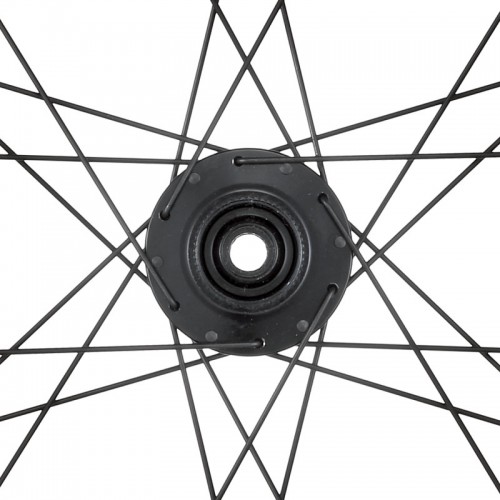

| HUBS | |
| Front and rear body | AL 6061 T6 |
| Axle material | AL 7075 T6 |
| Bearings | MICHE |
| Adjustment system | smoothness adjustment ring |
| Disc fixing system | center lock licensed by Shimano |
| Freewheel body | AL 7075 T6 |
| Compatibility | Shimano, Campagnolo, Sram 11 |
| O.L.D. | 100mm / 135-142mm |
| QR type | standard TX12/TX12 optional QR/QR |
| RIM | |
| Material | lightweight alloy |
| Front height | 30 mm asymmetric  |
| Rear height | 30 mm asymmetric |
| Dimension | ETRTO 622-17C |
| Width | outer 23 mm inner 17 mm |
| Valve hole diameter | 6,5mm |
| Tire | clincher (25mm ÷ 40mm) |
| SPOKES | |
| Material | Aisi 302 stainless steel (Sapim) |
| Shape | round, J-bend, double butted |
| Nipples | brass (Sapim) |
| Spokes number | 24 front and 24 rear |
| Spokes pattern | crossed x2 |
